TOOLING
Fain Models, Ltd. can check all types of drilling and machining fixture, weld fixtures, automotive framing tools, fixture assembly jigs, and bonding assembly jigs. Laser Tracker accuracy, quick set up, and easy repositioning have proved beneficial in reducing time on the job.
FINAL INSPECTION

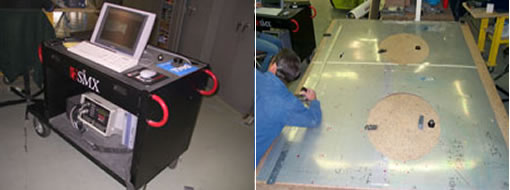

Use our TRACKER team for your Final Inspections of key features. We can acquire measurement data on specific areas or scan the entire surface on any object to be compared to your Master File. We supply you with documentation that clarifies deviation from the nominal surfaces along with images that let you know where, if any, your part is past the tolerance level set by you. It may require many hours the first time a complex object is measured depending on the size and complexity of the part. Successive inspections of the same feature, checked in the same order, may take only a fraction of the time due to templates that we create the first time. Compared to electronic Theodolites or Standard Optical Systems, Final Inspections using our SMX TRACKER can be ten times faster and twice as accurate.
IN PROCESS CHECKS
Let us check specifications while objects are still in the process of early fabrication. Easy setup and convenient portability help minimize interruption of the manufacturing process. Timely checks can pay big returns and eliminate rework.
ALIGNMENT
Alignment of bores, shafts, features, or equipment is also important. For large-scale objects and assemblies, a Tracker can be the key to quality. In some cases, manufacturing capability can be expanded when large object repositioning can be better controlled.
ROBOTICS
Fain Models, Ltd. can help you to fine tune machine motion and robot characterization. Our trained personnel can confirm that the origins, paths, and destinations of machine movements are on target. Alternately, a Tracker probe can be used to record a path in space, along which a robot can be programmed to travel.
